This part is a kind of regulator called 78L05.

Function of this product has THREE TERMINAL 5V, POSITIVE VOLTAGE REGULATOR.

Package : SOT-89 Type

Manufacturers : KIA

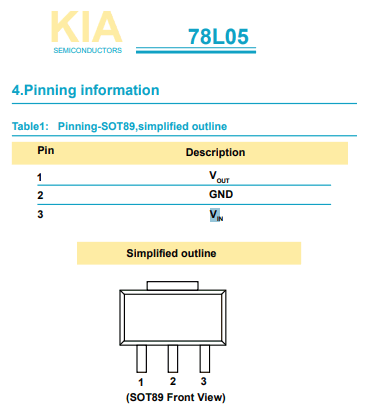

Image and pinout :

Some of the text within the PDF file :

KIA SEMICONDUCTORS THREE TERMINAL POSITIVE VOLTAGE REGULATORS 5V.

The 78L05 is a commonly used linear voltage regulator integrated circuit (IC). It is part of the 78xx series of voltage regulators, which are designed to provide a stable and regulated output voltage. Specifically, the 78L05 is a positive voltage regulator that produces a fixed output voltage of +5 volts.





The "78" in the name refers to the original series introduced by Texas Instruments, and the "L" indicates a low current variant. The "05" denotes the specific output voltage of +5 volts. The 78L05 is also available in other output voltage variants, such as 78L06 (+6 volts) and 78L08 (+8 volts), with each variant having a different number at the end to represent its output voltage.



1.Description:

The KIA 78L05 is monolithic fixed voltage regulator integrated circuit. Tt is suitable for applications that required supply current up to 100mA. 2.Features Output current up to 100mA No external part needed Thermal overload shutdown protection Short circuit current limiting SOT89 package 3.Applications Battery-powered circuitry Post regulator for switching power supply 4.Pinning information Table1: Pinning-SOT89,simplified outline Pin Description 1 V OUT 2 GND 3 VIN Simplified outline 5.Marking information KIA 78L05 Marking 8A 6.Package information 1K/Reel 8K/Box 40K/CTN 9396 850 1656 Product data Rev.01-11 April 2005 1 23 (SOT89 Front View) KIA semiconductors All right reserved 1 of 3 [ ... ]
